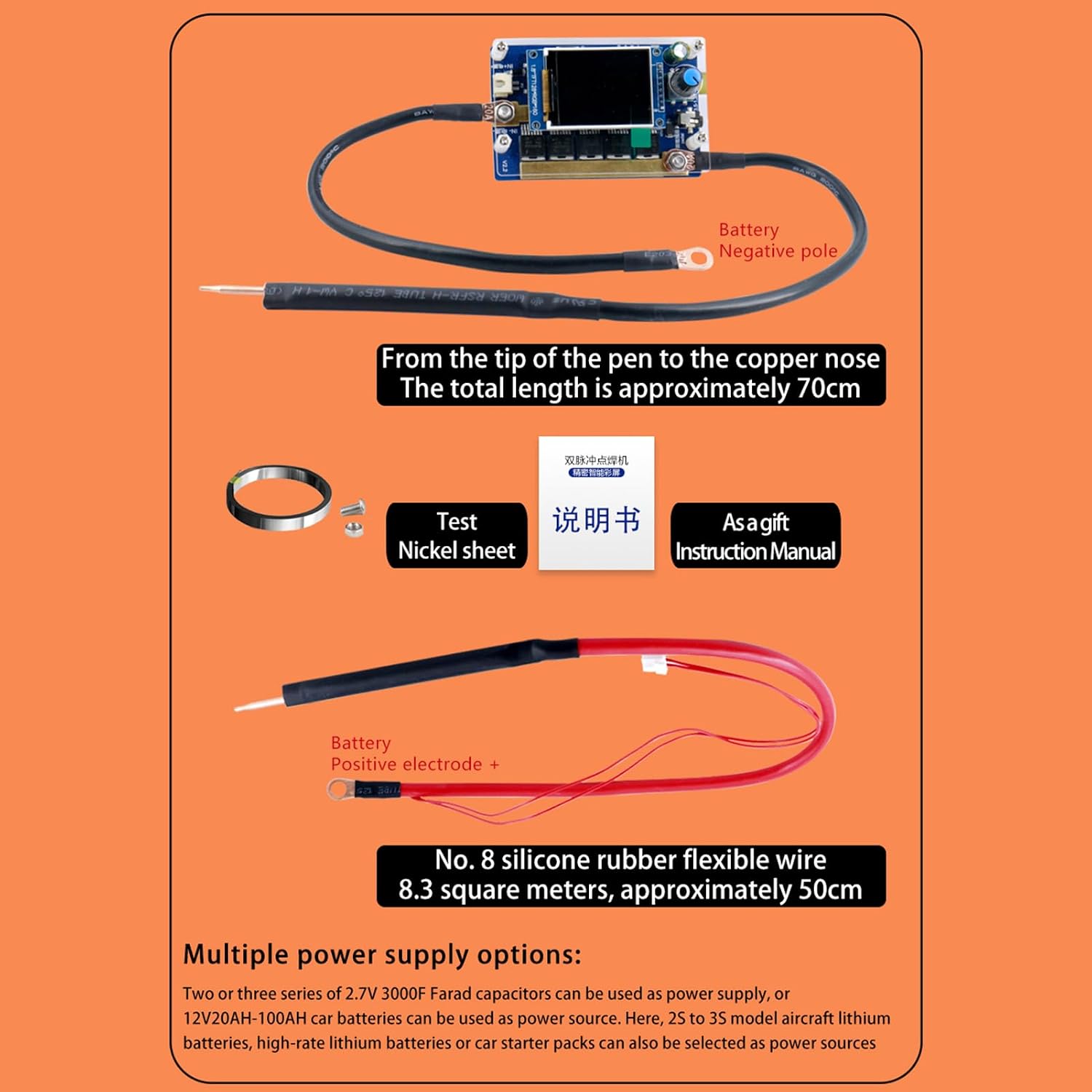

Mini Spot Welder Control Board Dual Pulse Intelligent 1.8 Inch Color Screen for Lithium Battery Welding Equipment Digital Display Spot Welding Machine (Machine)
Product details
| Management number | 222702607 | Release Date | 2026/05/04 | List Price | US$14.52 | Model Number | 222702607 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1. Smart Welding Machine: With a maximum output current of 2000A and over-temperature protection, suitable for welding cylindrical lithium batteries etc. 2. Precise Control Panel: Equipped with a 1.8-inch color screen with adjustable parameters such as power voltage display, welding machine counting function, historical welding total count, current display, manual triggeres delay, and more. Settings can be saved even after power-off, with adjustable screen backlight and buzzer on/off option. 3. Intelligent Functions: Automatically shuts down after 10 minutes of inactivity, with switchable screen languages between Chinese and English. Supports foot pedal switch for more convenient operation. Offers auto mode or manual foot pedal mode for flexible use. 4. Adjustable Parameters: Interval time can be adjusted from 0 to 99 milliseconds, pulse 1 from 1 to 25 milliseconds, and pulse 2 from 0 to 25 milliseconds. Features auto welding delay adjustable from 0 to 5 seconds and automatic shut-off after 10 minutes. 5. Languages: Design with English and Chinese system languages to choose. Specification: Maximum Output Current: 2000A. Language: Chinese/English. Pulse 1: Maximum adjustable time of 1-25 milliseconds. Pulse 2: Maximum adjustable time of 0-25 milliseconds. Interval: Maximum adjustable time of 0-99 milliseconds. Auto Welding Delay: Maximum adjustable time of 0-5 seconds. Auto Shutdown Time: 10 minutes. How to Use: Follow the instruction manual packing list: 1 x Welding Machine with 2 wires 1 x Testing Metal Sheet 1 x User Manual 1 x Silicone Wire No.8 1 x Screw 1 x Nut Note:
- Smart Welding Machine: With a maximum output current of 2000A and over-temperature protection, suitable for welding cylindrical lithium batteries etc.
- Precise Control Panel: Equipped with a 1.8-inch color screen with adjustable parameters such as power voltage display, welding machine counting function, historical welding total count, current display, manual triggeres delay, and more. Settings can be saved even after power-off, with adjustable screen backlight and buzzer on/off option.
- Intelligent Functions: Automatically shuts down after 10 minutes of inactivity, with switchable screen languages between Chinese and English. Supports foot pedal switch for more convenient operation. Offers auto mode or manual foot pedal mode for flexible use.
- Adjustable Parameters: Interval time can be adjusted from 0 to 99 milliseconds, pulse 1 from 1 to 25 milliseconds, and pulse 2 from 0 to 25 milliseconds. Features auto welding delay adjustable from 0 to 5 seconds and automatic shut-off after 10 minutes.
- Languages: Design with English and Chinese system languages to choose.
| Size | Spot Welding Machine |
|---|---|
| Item Weight | 10.6 ounces |
| Manufacturer | CIOURSTO |
| Power Source | AC/DC |
| Item model number | CIOURSTOdwe8sbixlf-11 |
| Batteries Required | No |
| Package Dimensions | 5.91 x 5.91 x 1.97 inches |
| Included Components | no |
