2 Axis Dro Set Digital Readout Kit With Linear Scales 5U 5V TTL DB9

2 Axis Dro Set Digital Readout Kit With Linear Scales 5U 5V TTL DB9

• 1. 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.
  2. If you choose 5u 300mm,5u 400mm, the total length are 440mm, 540mm.
  3. When order, please tell me your length, so that I can send you fast

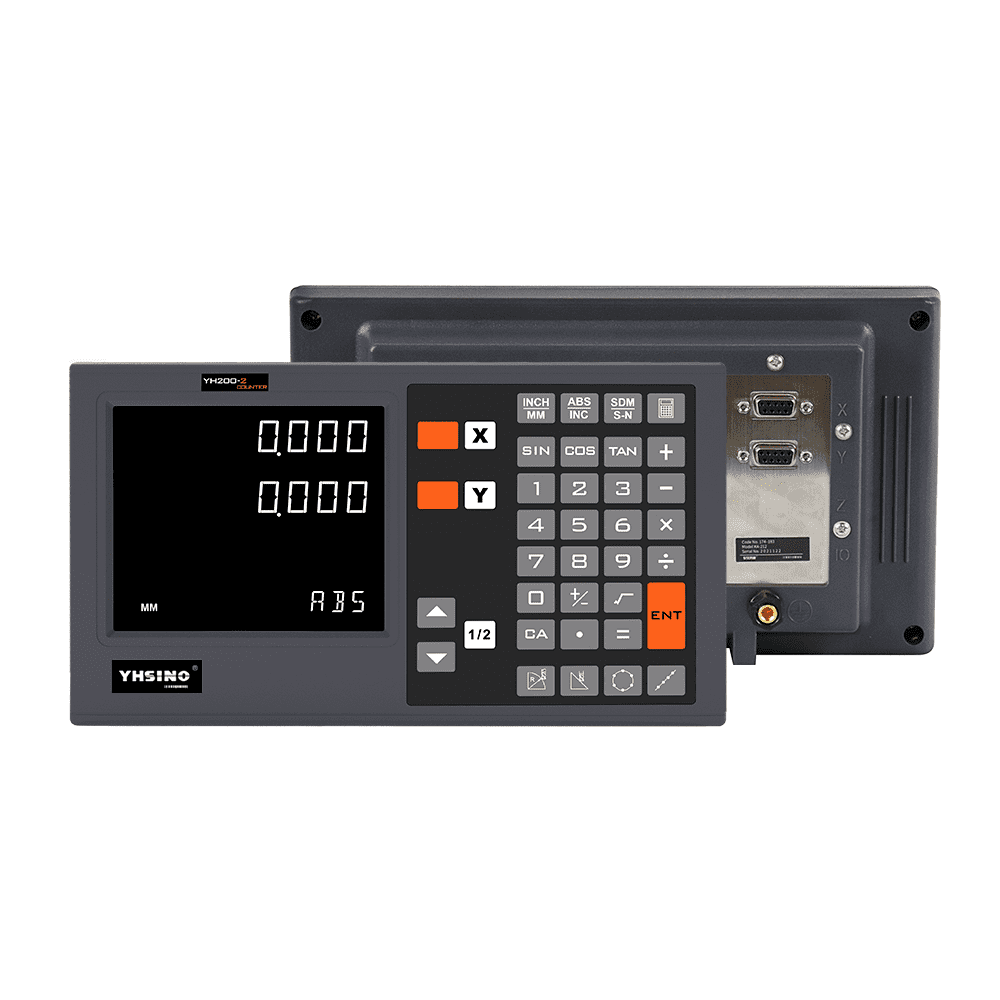

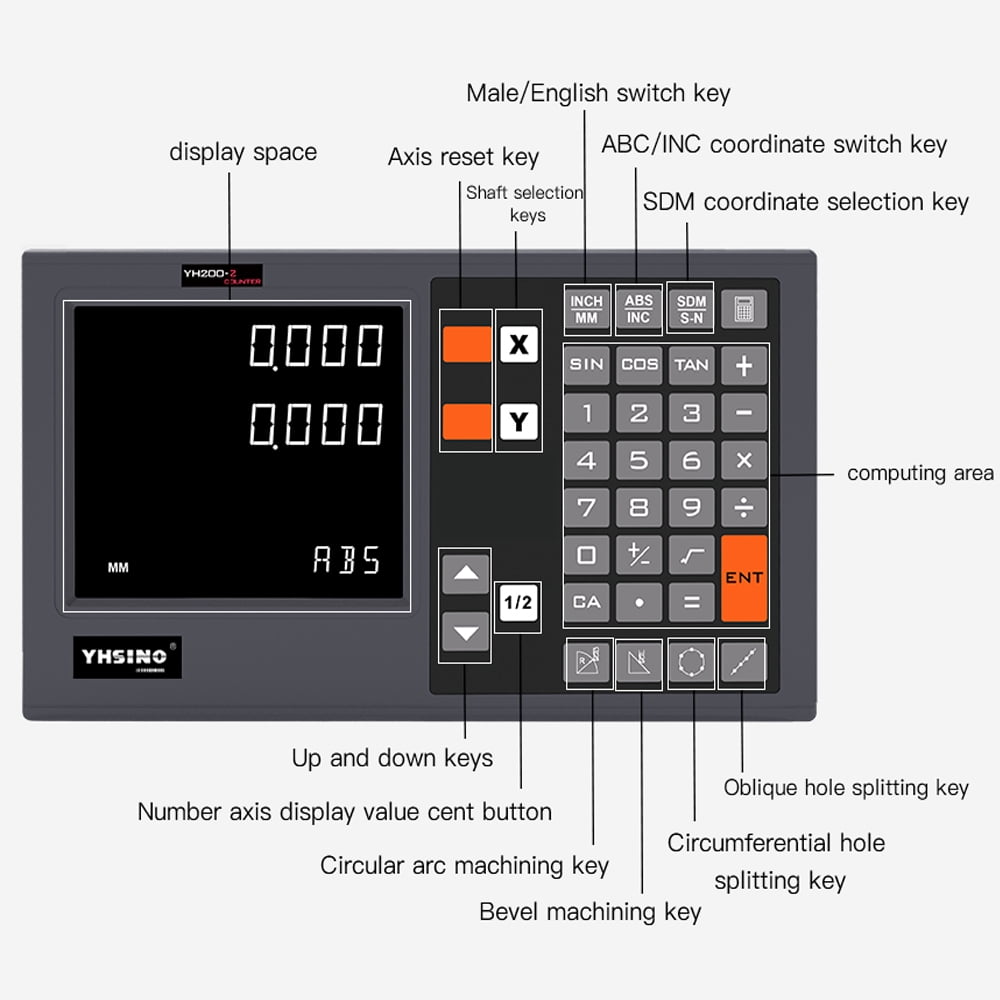

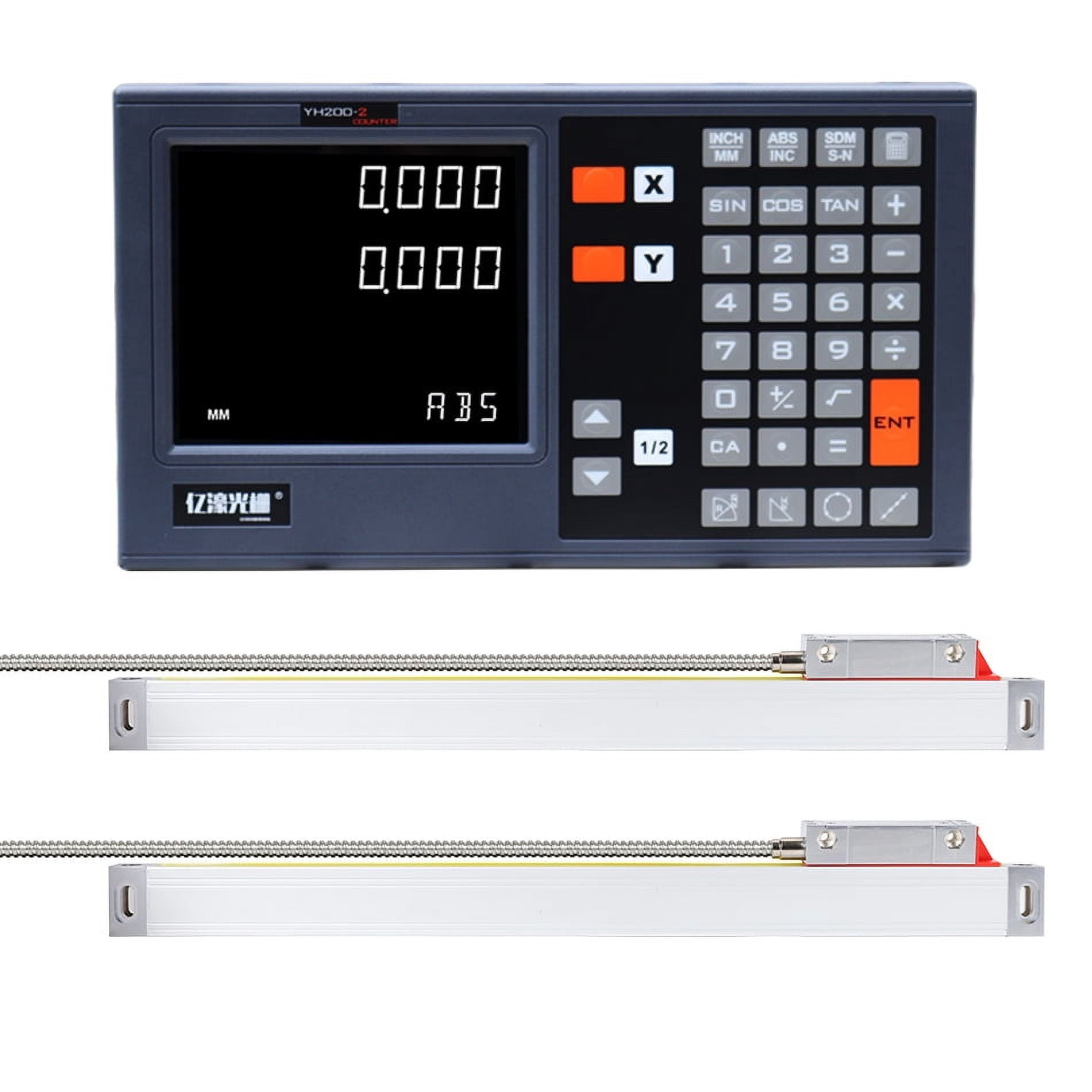

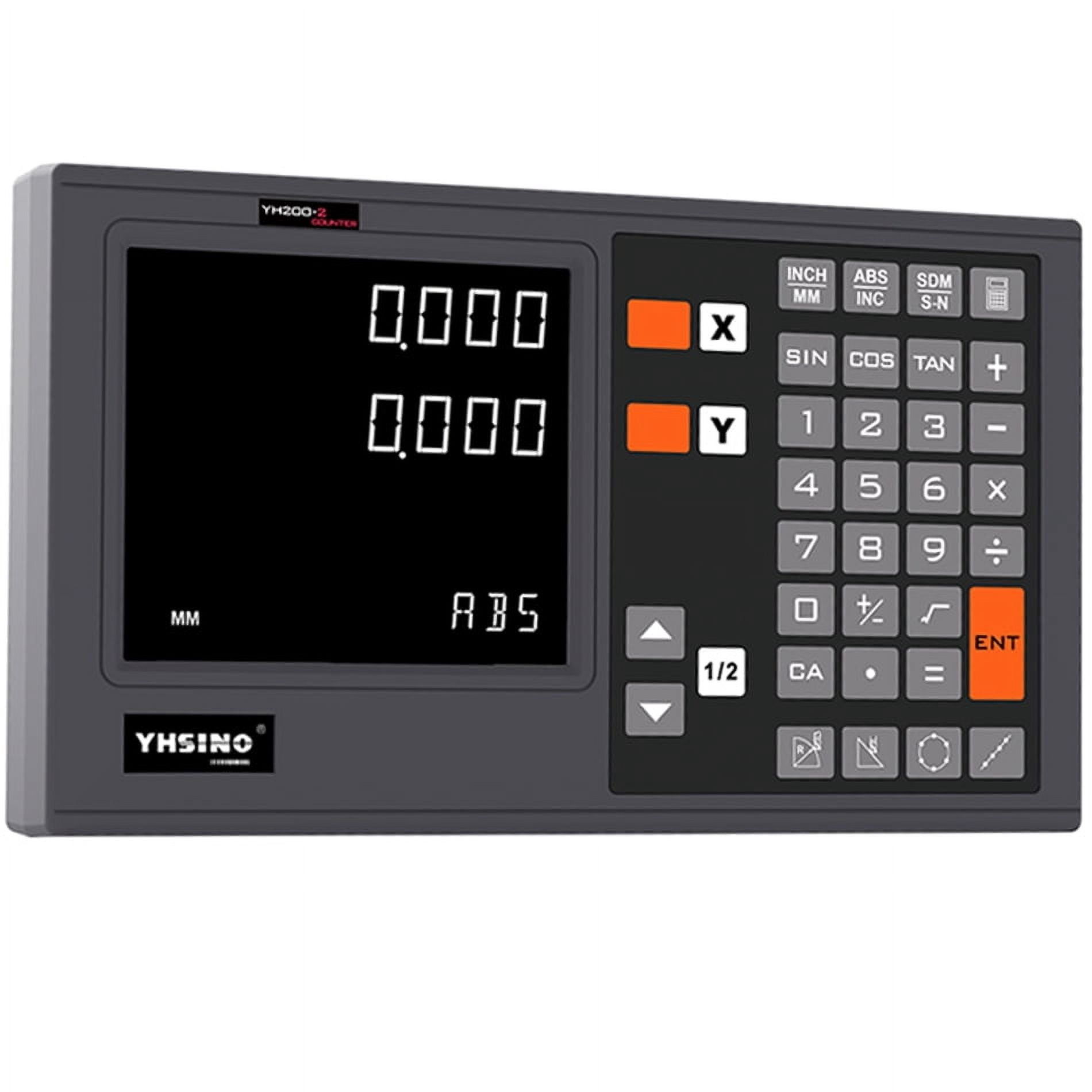

• YH200-2 Dro Digital Readout Display System Functions
  1:Zero clearing
  2:Reset
  3:mm/inch mode
  4:ABS/INC coordinate conversion
  5: 200sets sub datum
  6:Power off Memory;
  7:Center of 1/2
  8:Liner error compensation
  9:Sleepping mode
  10:Clear 200 sets Sdm datum;
  11:ABS/INC mode
  12:Calculator
  13:Drilling of circumference
  14:Drilling of oblique line
  15:Machining of inclined plane
  16:Machining of circular arc
  17:Lathe function(match)
  18:Rectangular lumen gradual processing
  19:Digital filtering
  20:Vibration filtering
  21:Radius /Diameter fucntion
  22: Lathe function

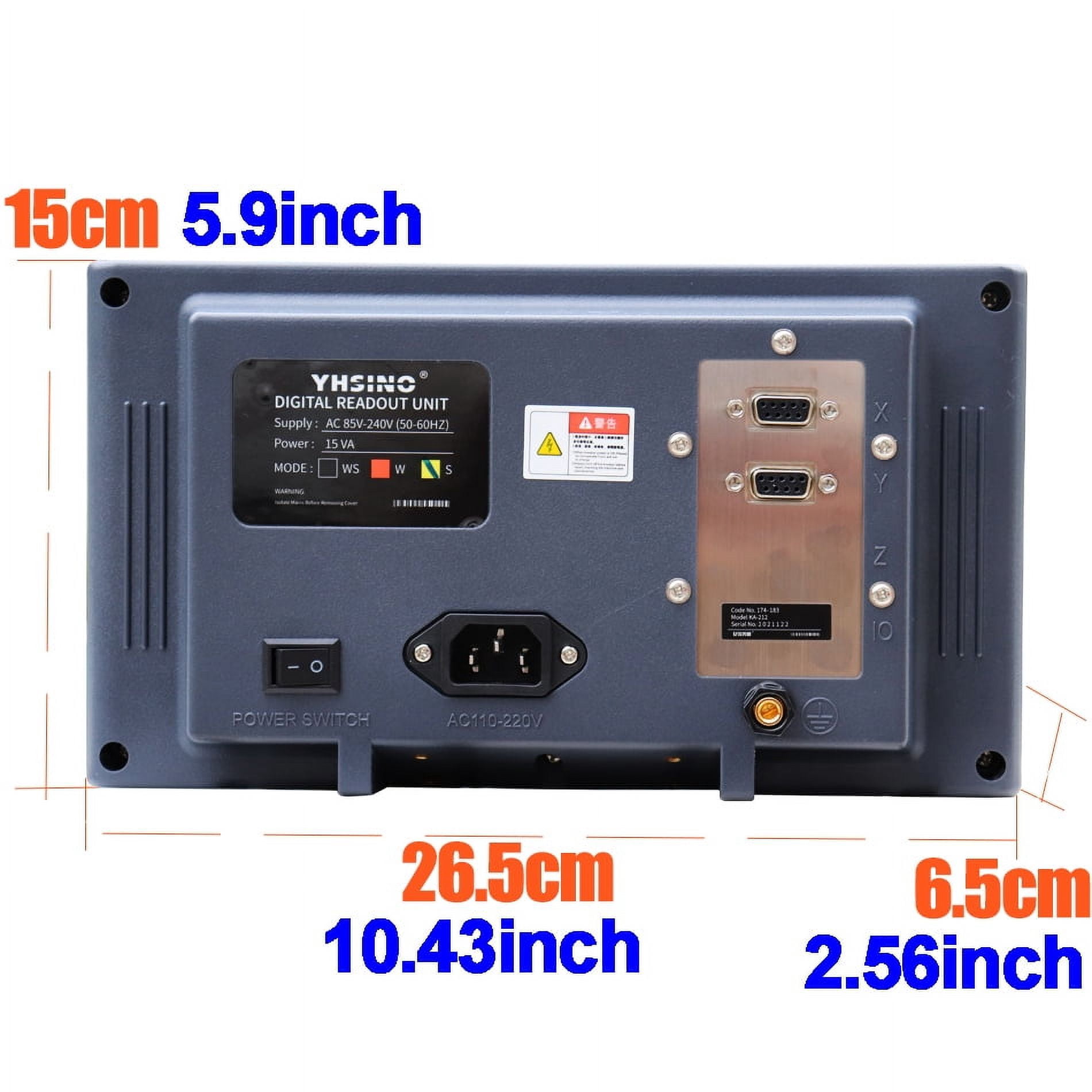

• YH200-2 Dro Digital Readout Display System Parameter
  1.Voltage Range: AC 80V~250V/50HZ~60HZ
  2.Acceptable Signal: TTL
  3. Plug: DB9
  4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.
• YH200-2 Advantage
  1. It is new dro,smaller, better performance. Take less space on your machines.
  2. We are factory, price and quality are good, can quick solve your problem, saving much tims.
  3. can widely used for mill, lathe, drilling, boring, wire cutting machine.
  4. We offer different type plug suite for different countries if need.

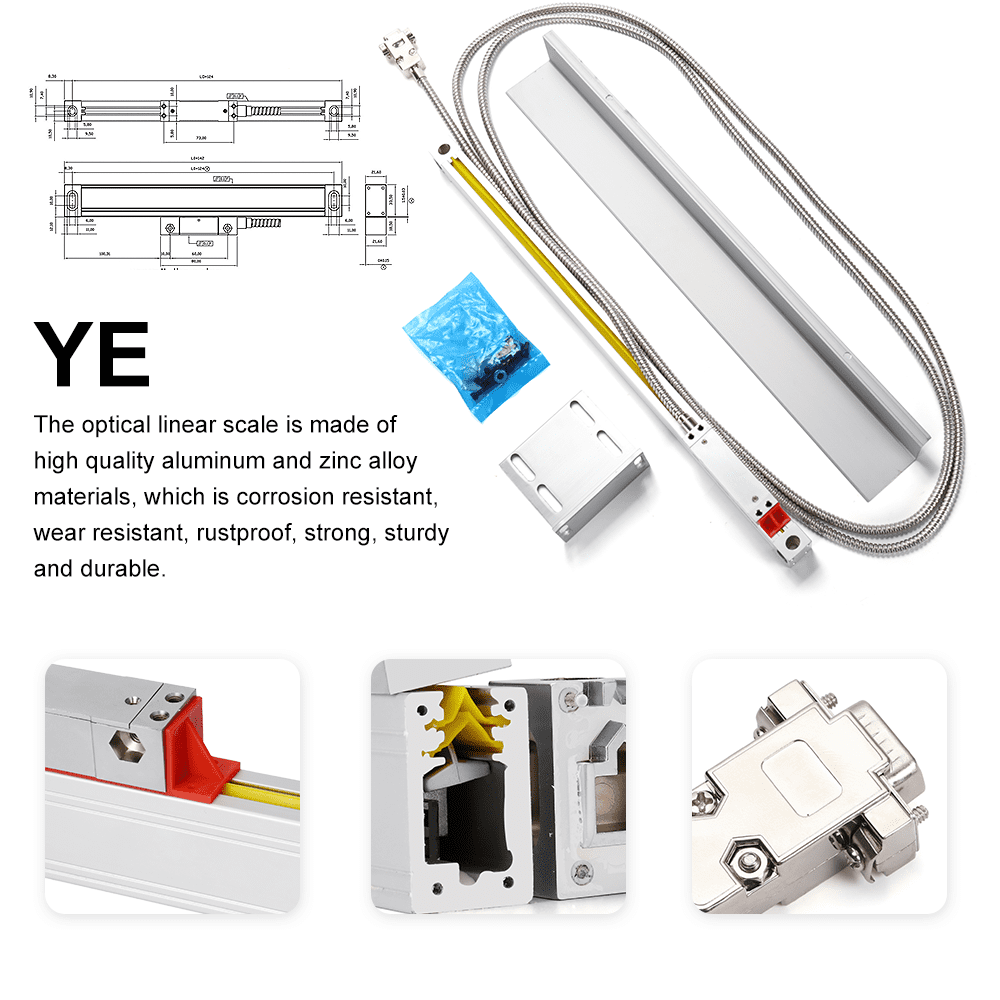

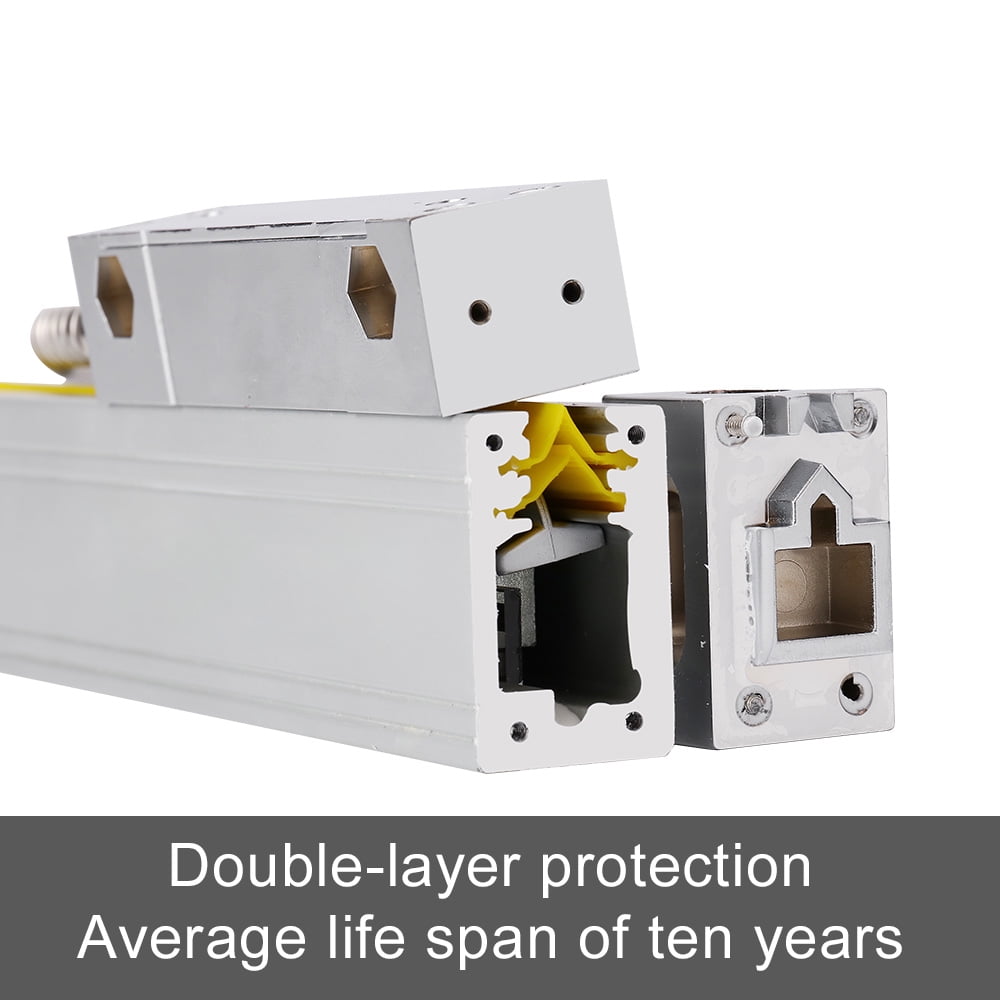

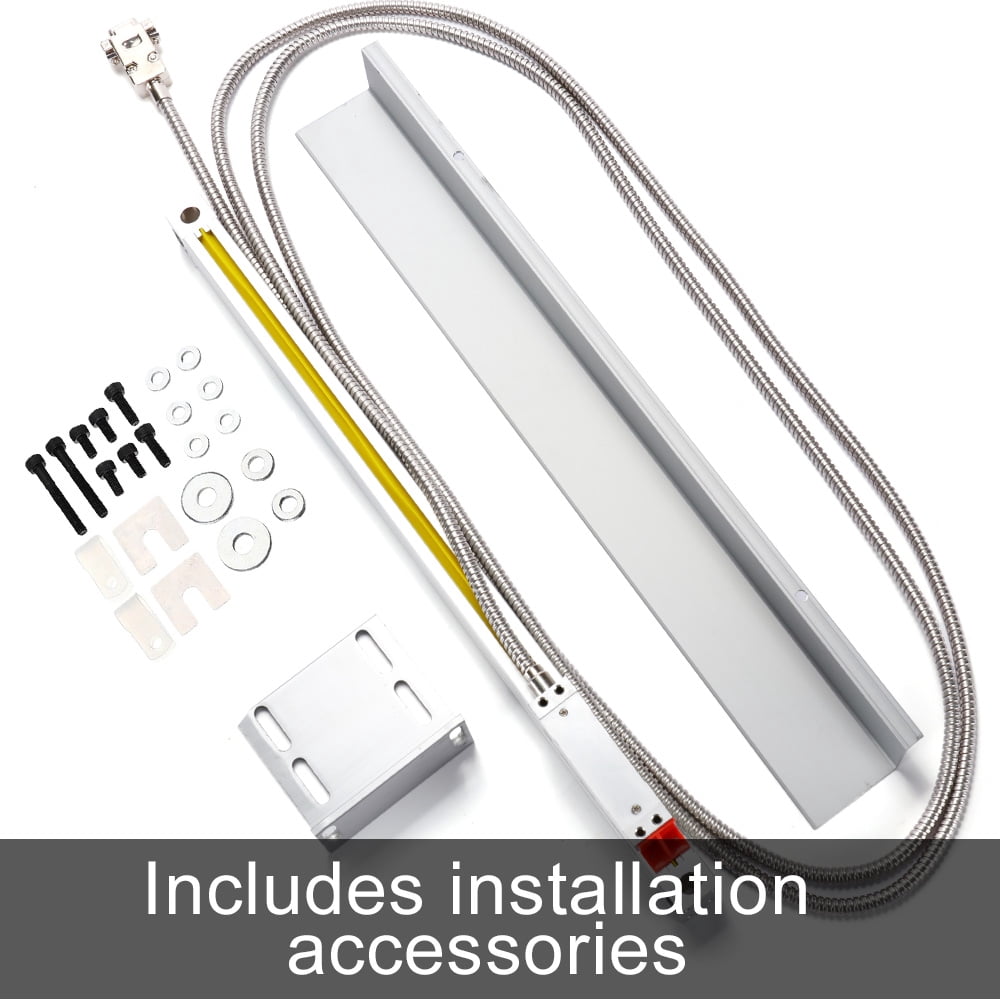

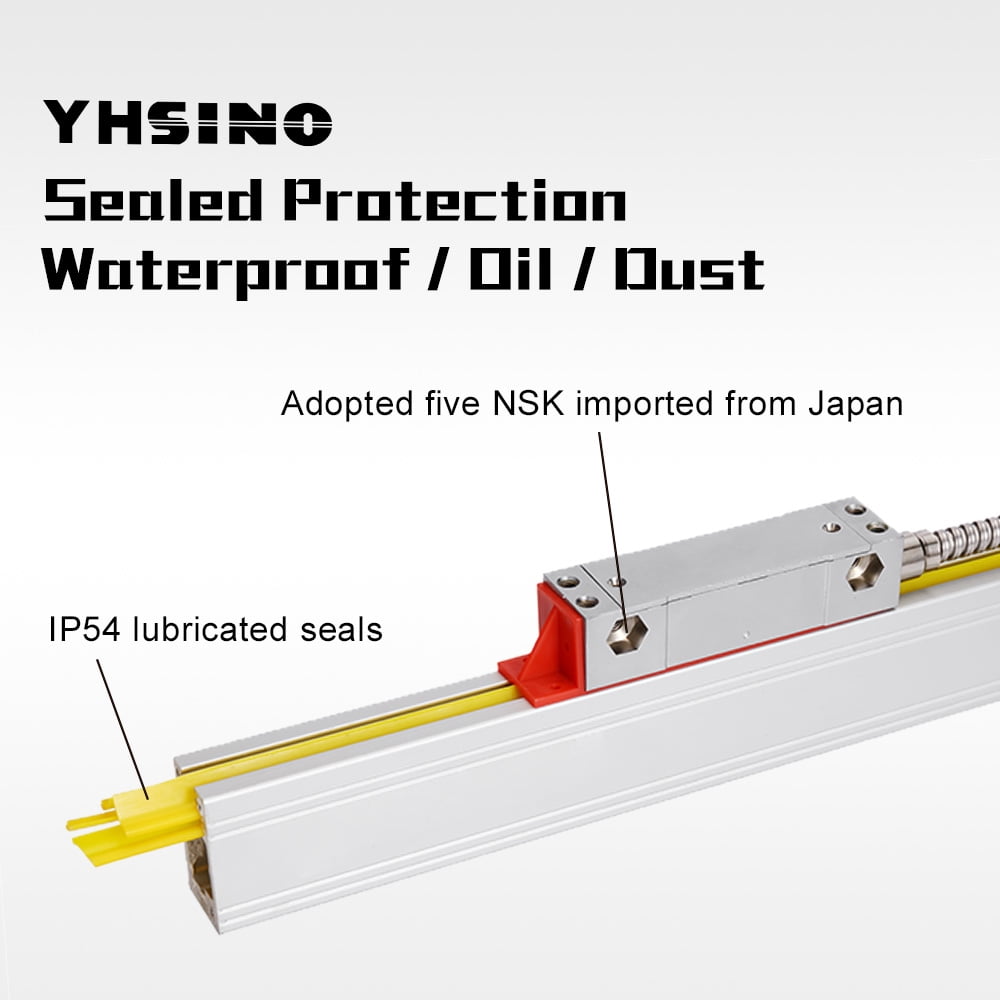

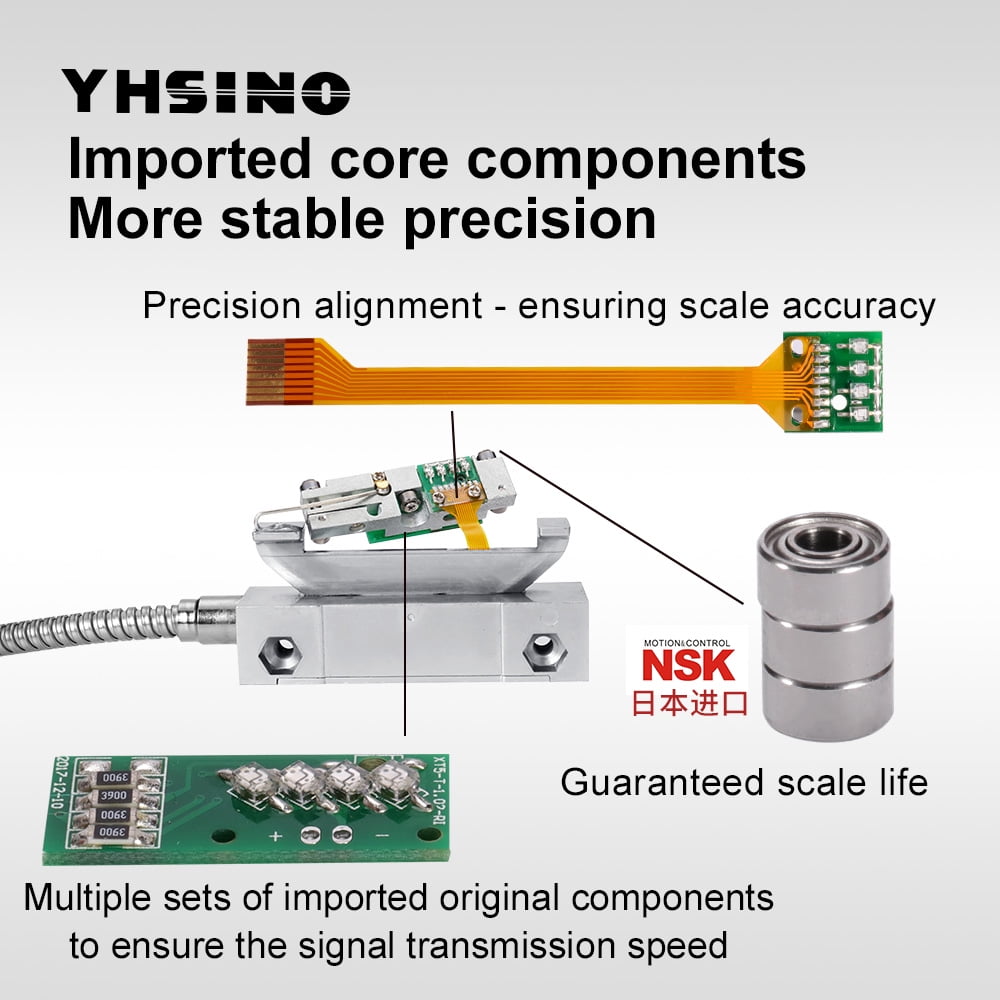

• 5U Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters
  1. Travel (measuring) length: 0-1000mm / 0-40inch
  2. Total (overall) length: Travel length + 140mm (0-1140mm)
  3. Plug: DB9
  4. Resolution: 0.005mm(5u)
  5. Input voltage: 5V
  6. Grating pitch: 0.02mm (50LP/min)
  7. Cable length: 3 Meter
  8. Normal size: About 22*34
• The Signal of 5uLinear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor
  Pin 2 Black 0V
  Pin 6 Green A
  Pin 7 Red 5V
  Pin 8 White B
